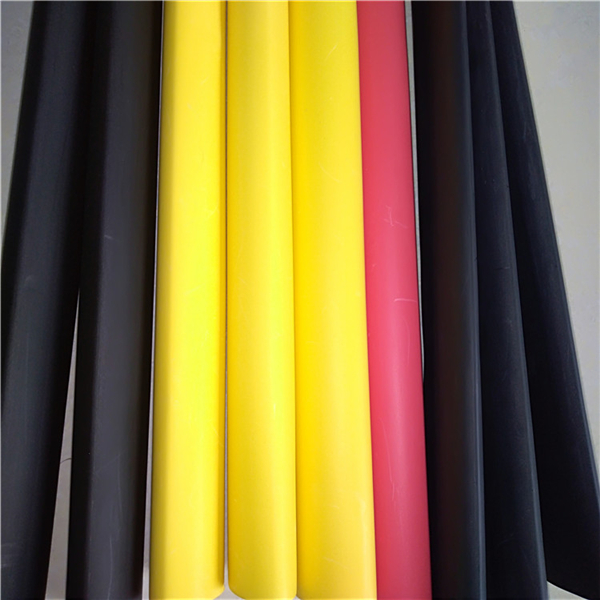

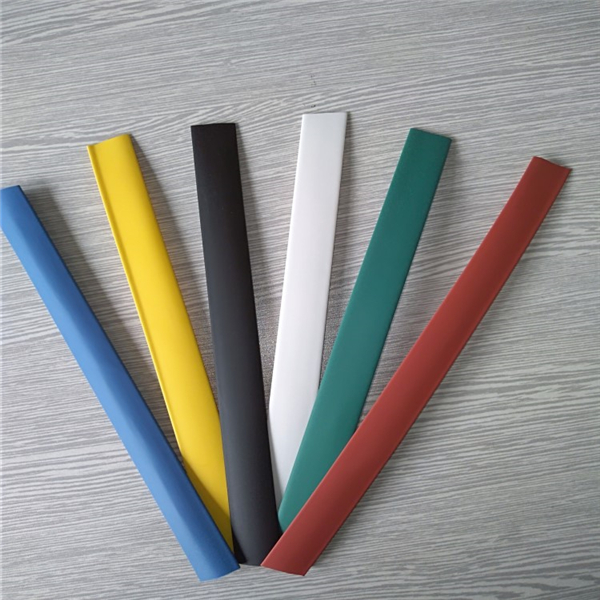

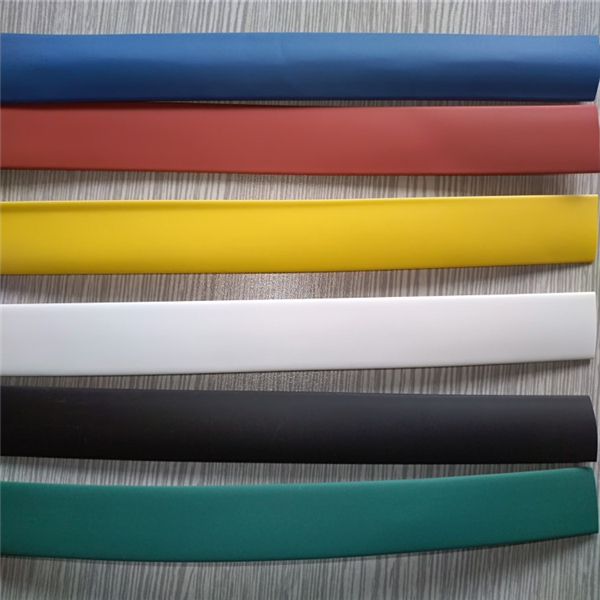

- Low voltage insulation heat shrink tube for cable
- 【Brief 】：
Environment friendly,
flexible,
flame-retardant polyolefin tubing
Technical Data !!
- 【Series】：Single wall heat shrink tube
- Product description
- Low voltage insulation heat shrink tube for cable
Model: A-2(NH)Features
1. Flexible
2. Zero halogen, polyolefin cross linking
3. Flame retardant for black
4. Low smoke generation if burning
5. Continuous Operating Temperature:-45℃ to 125℃
6. Shrink Temperature:120℃
7. RoHS and Sony compliant
KeHong Enterprises Co.,Ltd.
No,7118,Floor 7, Sha Feng Business Building,
Jin sha zhou, Baiyun District,Guangzhou,China.
www.gzhelectric.com
www.heatshrinkstar.com
www.khenterprise.en.alibaba.com
E -mail：gavin@gzhelectric.com
Tel:+86-20-82586869, Mobile: +8615918777767
Wechat:008615918777767
Skype:gonggulily
| Technical Date: Physical | ||
| Property | Test Method | Typical Performance |
| Tensile Strength(Mpa) | ASTM D2671 | 10.4MPa |
| Elongation(%) | ASTM D2671 | 200% |
| Tensile Strength after Heat aging | UL224 158℃ X168hrs | ≥7.3 |
| Elongation after aging(%) | UL224 158ºċ X168hrs | ≥100 |
| Heat shock | UL224 225ºċ X4hrs | No dripping |
| No cracking | ||
| Electrical | ||
| Property | Test Method | Typical Performance |
| Dielectric Strength | IEC 243 | ≥15kv/mm |
| Volume Resistivity | IEC 93 | ≥1×1014Ω·㎝ |
| Chemical | ||
| Property | Test Method | Typical Performance |
| Corrosion Action | UL224 158℃ | PASS |
| X168hrs | ||
| Copper Compatibility | UL224 158℃ | PASS |
| X168hrs | ||
