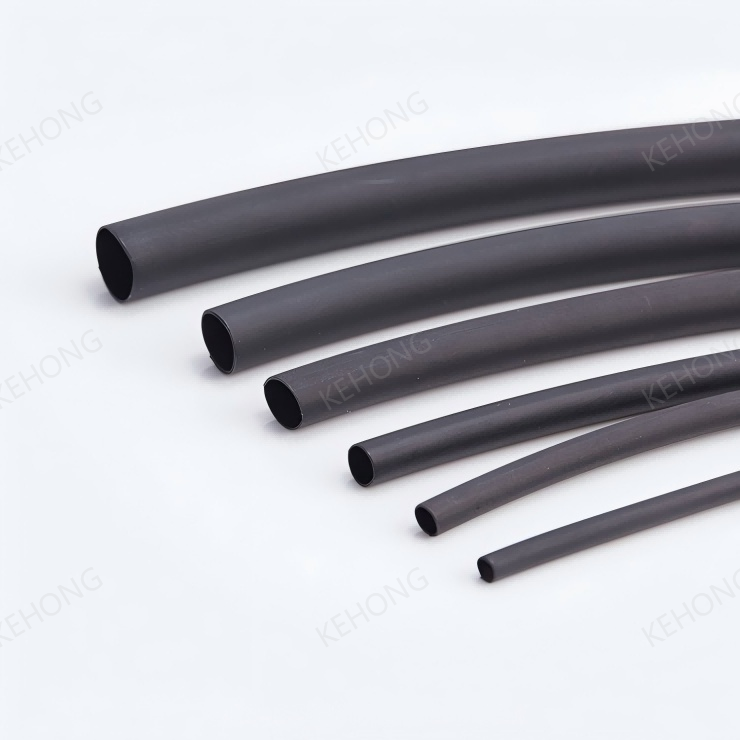

Product Overview: DR-150 Heat Shrink Tubing

DR-150 is a high-performance heat shrink tubing manufactured by Guangzhou Kehong Electric Co., Ltd. It is designed for protecting wiring harnesses in extreme environments and is renowned for its exceptional resistance to high-temperature fluids and outstanding mechanical properties.

Features：

Material cross-linked elastomer,

Color: black.

Shrink Ratio:2:1.

Temperature Range:

Operating Temperature: -75°C to +150°C, suitable for both extremely cold and high-temperature environments.

Shrink Temperature: Minimum shrink temperature is 150°C; full recovery is recommended at 175°C.

Product sizes (mm/inch)

Superior Resistance:

Chemical/Fluid Resistance: Exhibits excellent resistance to aviation fuels, diesel, hydraulic fluids, lubricating oils, and other fluids.

Physical Protection: Features flame retardance, abrasion resistance, and mechanical toughness, providing reliable protection for cables.

Specifications: Meets various military and industrial standards, including AMS-DTL-23053/16, VG 95343 Part 5 Type D,UL224,ROHE and others.

Printable Logo: Satisfy the needs of branding, anti-counterfeiting, identification, etc., and can print information on heat shrink tubing in multiple printing methods.

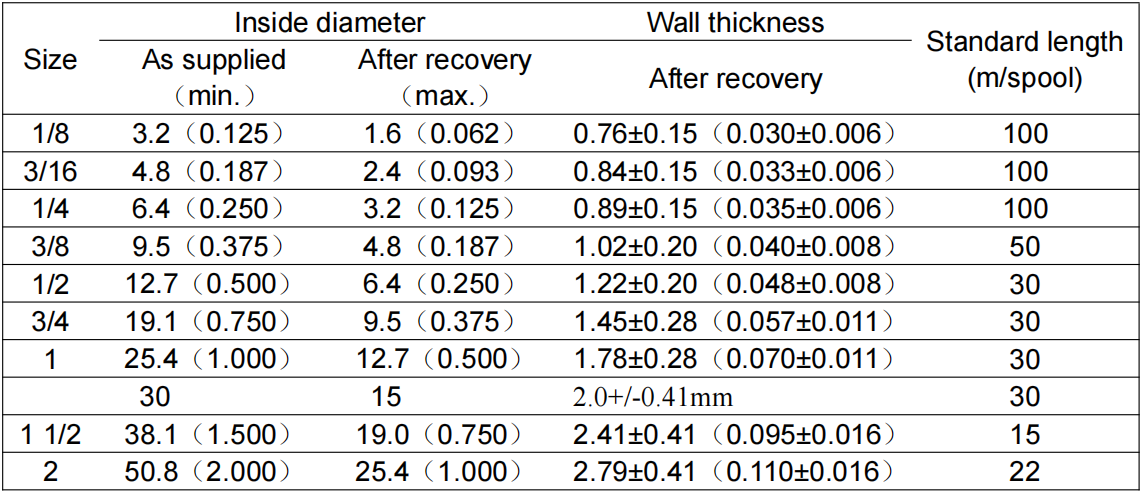

Dimensions and Specifications：

DR-150 tubing is available in various sizes to accommodate different cable diameters. The table below lists common specifications. The supplied inner diameter is the minimum inner diameter before shrinkage, and the recovered inner diameter is the maximum inner diameter after full recovery.

Applications:

Due to its robust performance, DR-150 tubing is primarily used in the following applications:

-Cable harness protection for military ground vehicles.

-Wiring in motorsports, where resistance to high temperatures, oils, and vibration is critical.

Aerospace equipment requiring resistance to aviation fuels and hydraulic fluids.

Other industrial or commercial equipment demanding high-level chemical and abrasion protection.

Similar products:
Raychem DR-25,Sumitomo R120,3M PSTH,LG DRET, Alpha FIT-601 and others.
